Nilight 5PCS Waterproof Round Rocker Switch w/Wiring Harness Switches Holder 12V 24V Blue LED Lighted On Off Toggle Shell SPST 3Pin for Switch Panel Car RV Trucks Marine Boats
Applications:
Our switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment. It is widely used to control LEDs and circuits on Car, RV, Marine Boats, Trucks, Households, Coffee Machine, Industrial Equipment and Medical Equipment.

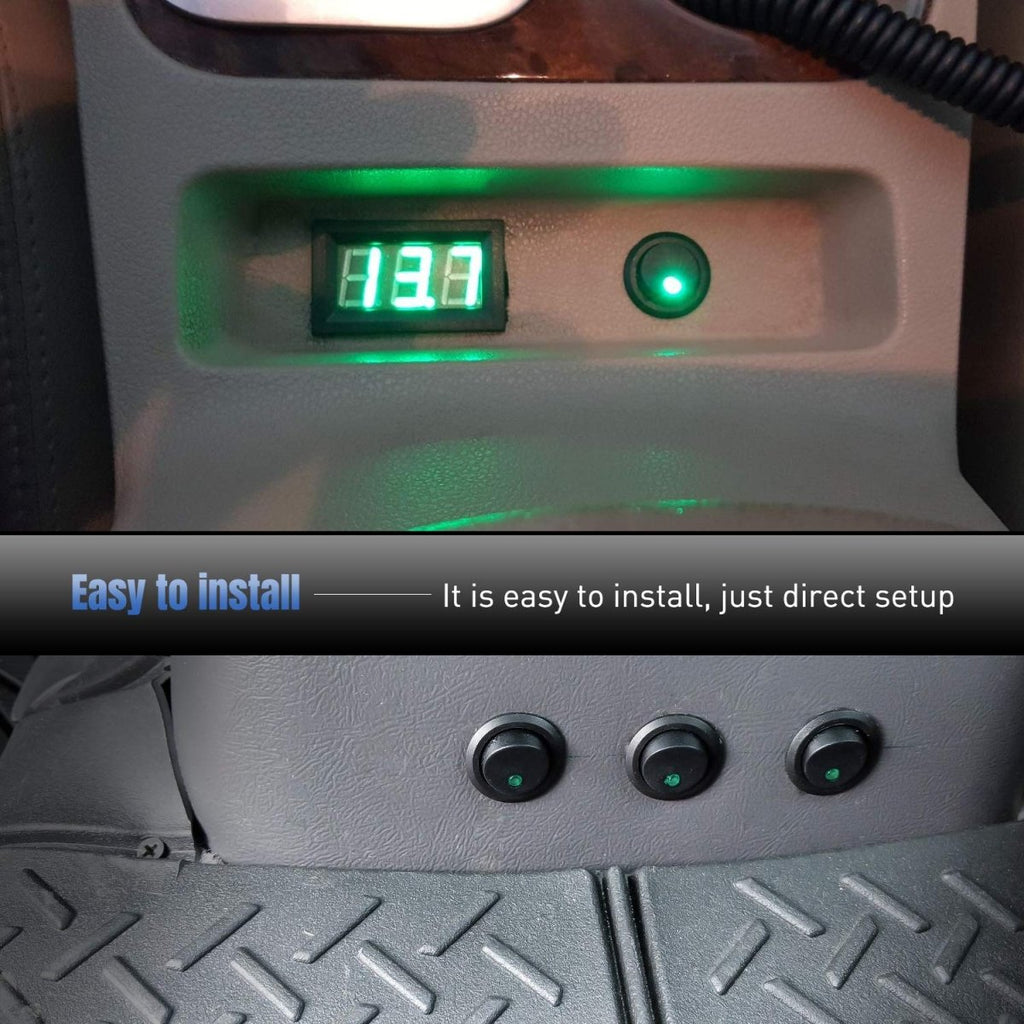

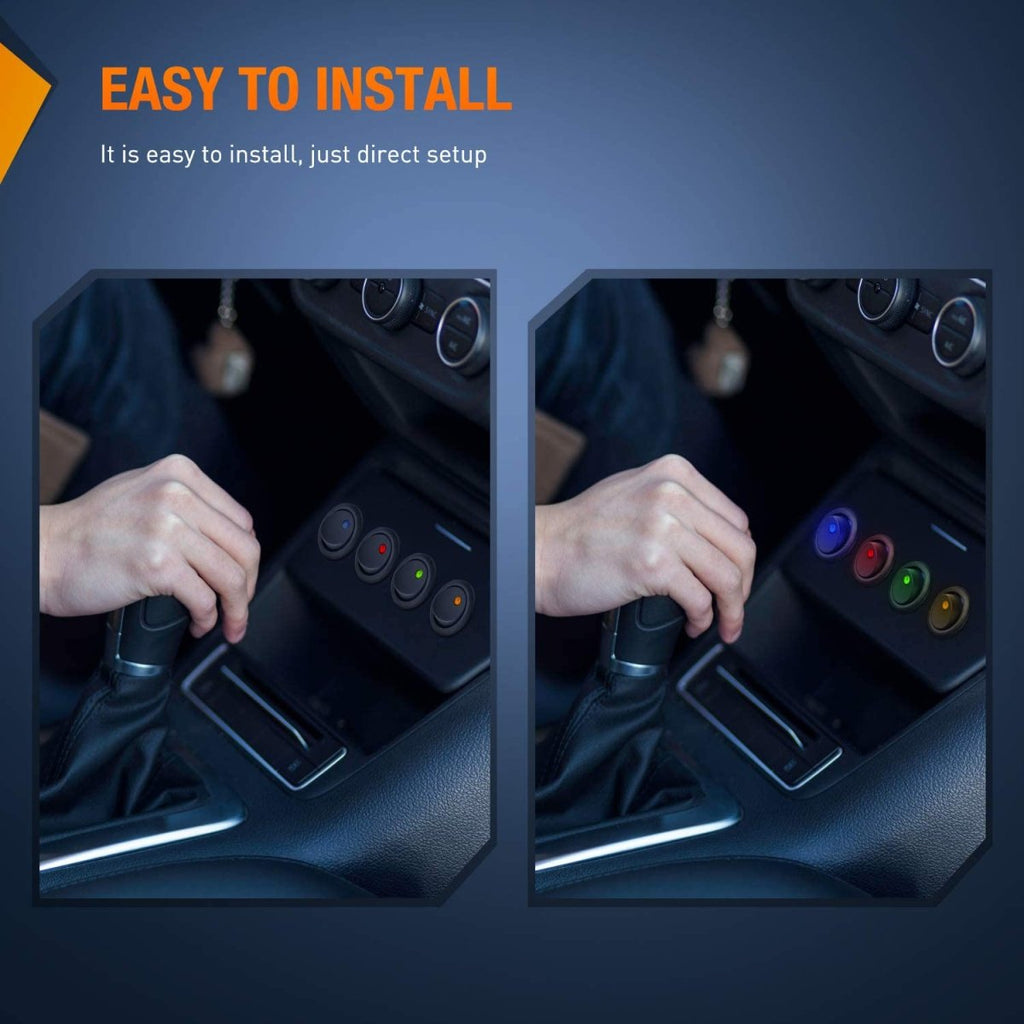

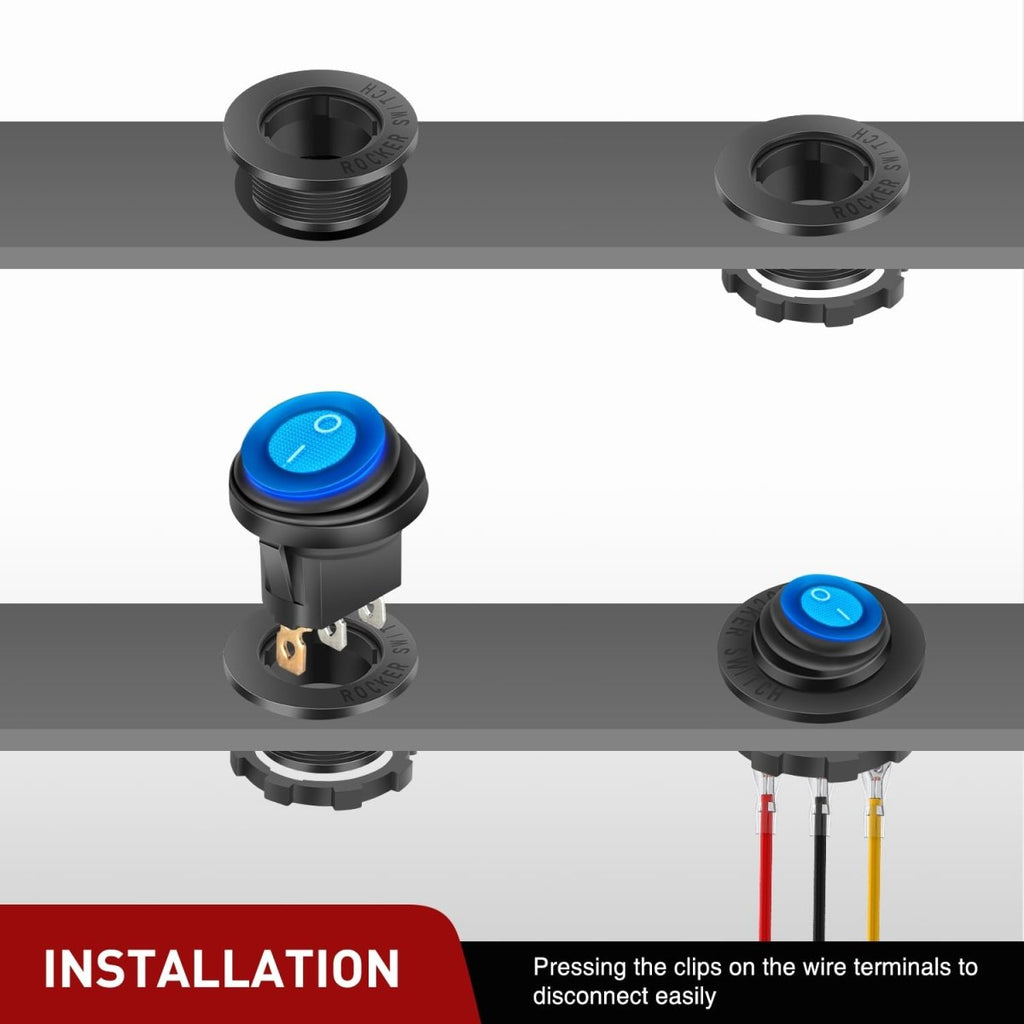

Easy Installation
STEP 1
Mounting hole diameter:29mm.
STEP 2
Insert the Round shell and tighten the screws
STEP 3
Insert the switch
Finished

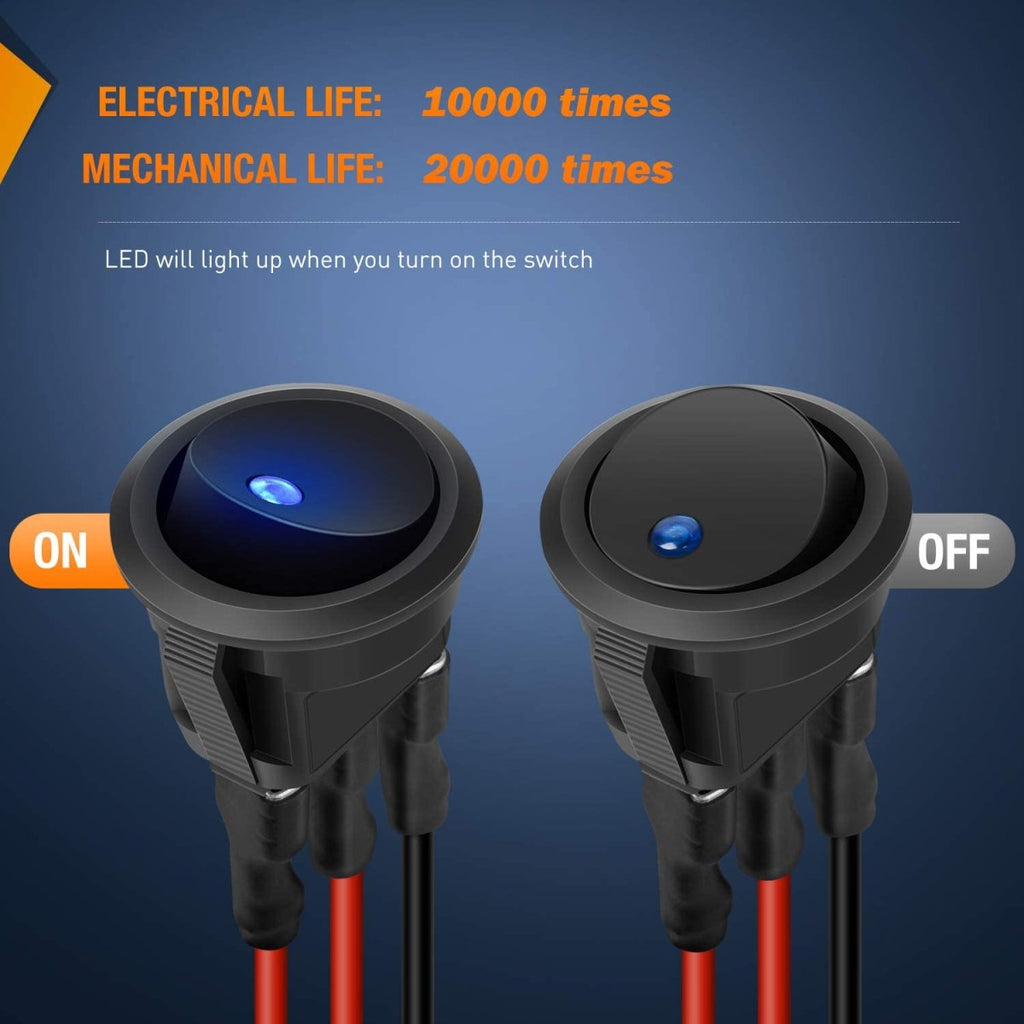

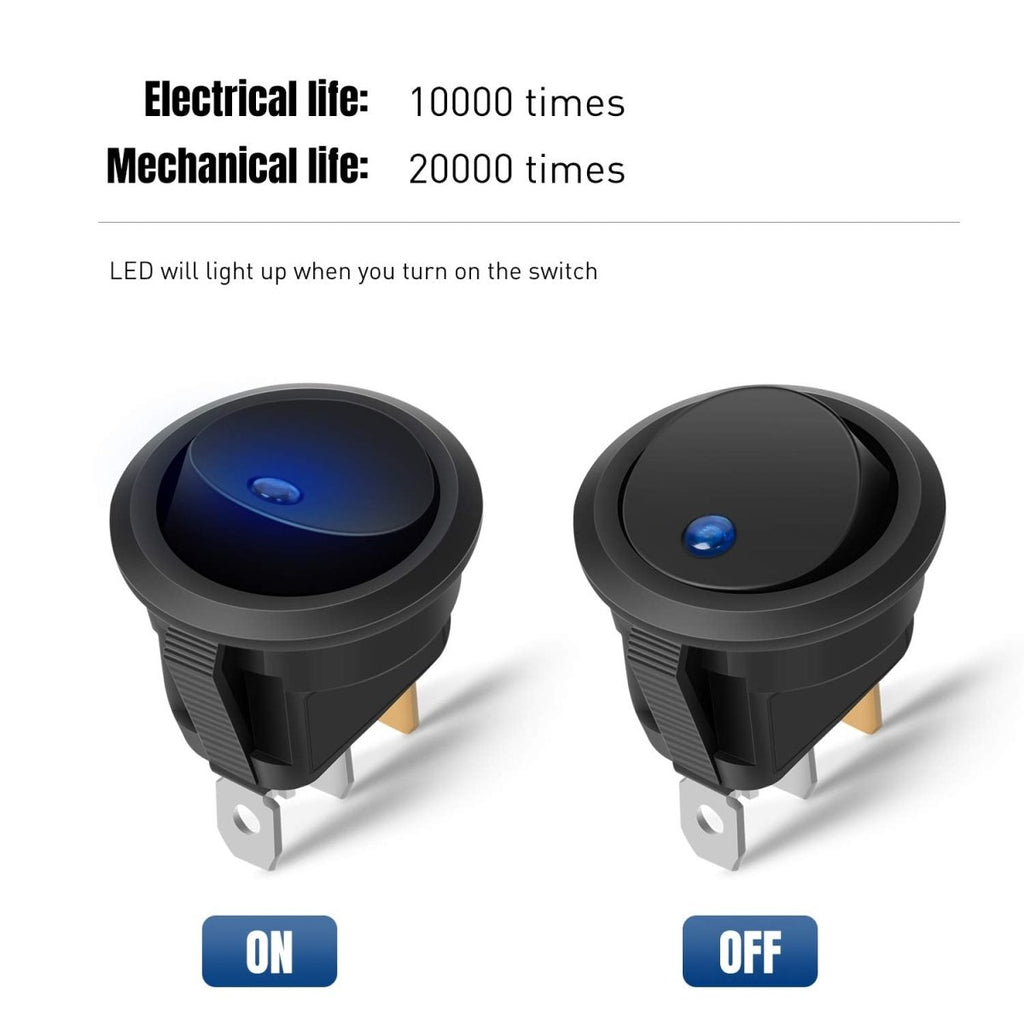

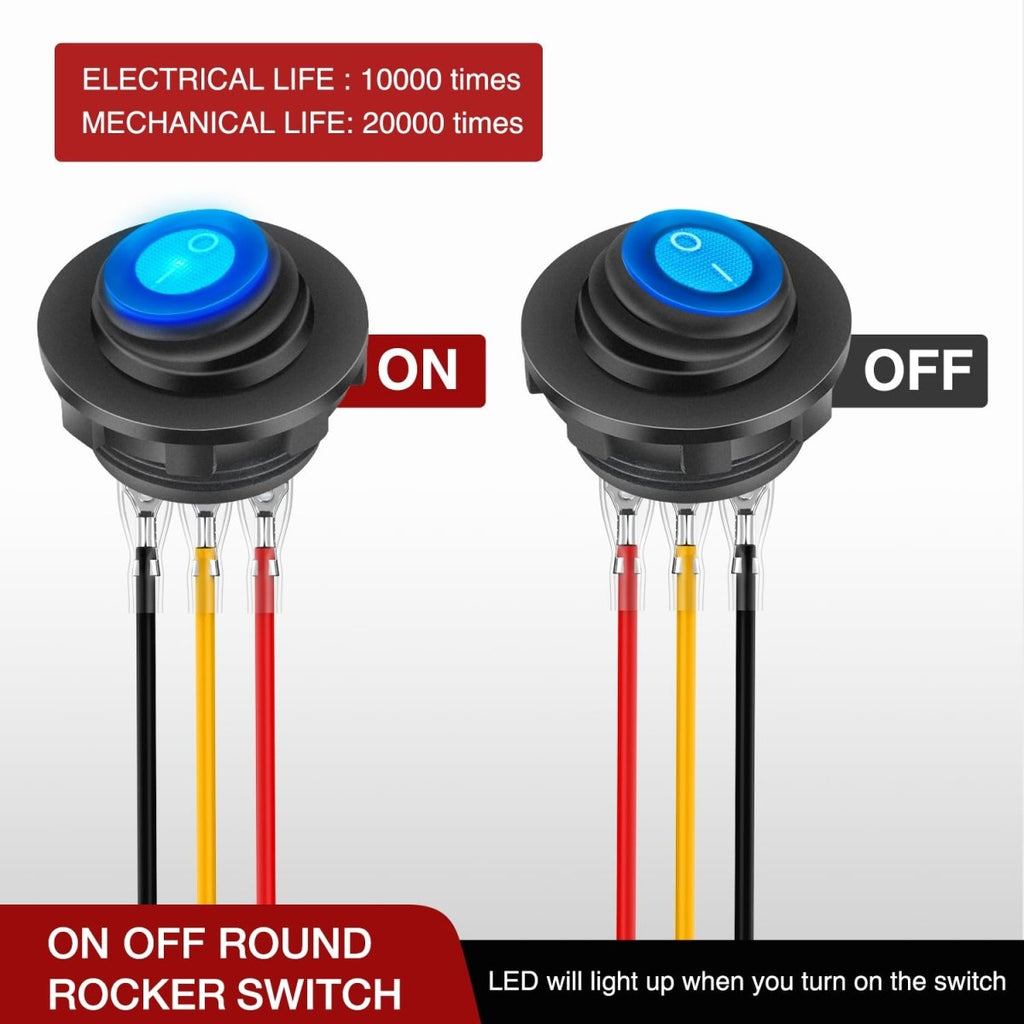

'O I' marked on the button, Switch LED will light up to indicate the operating status of the device when the switch is turned ON.
Features

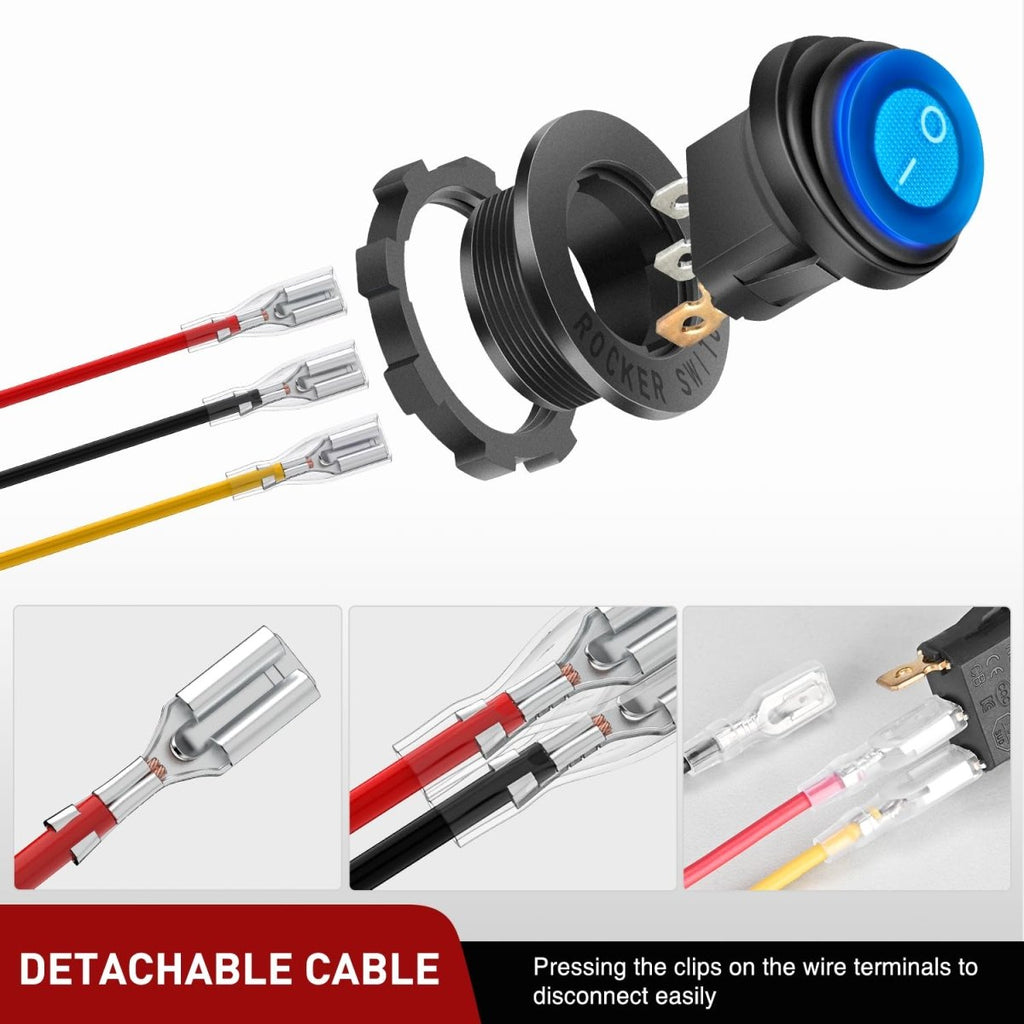

Easy disconnect wires
Each switch will come with a set of easy disconnecting design wires , which can be easily removed by pressing the clips on the connector.

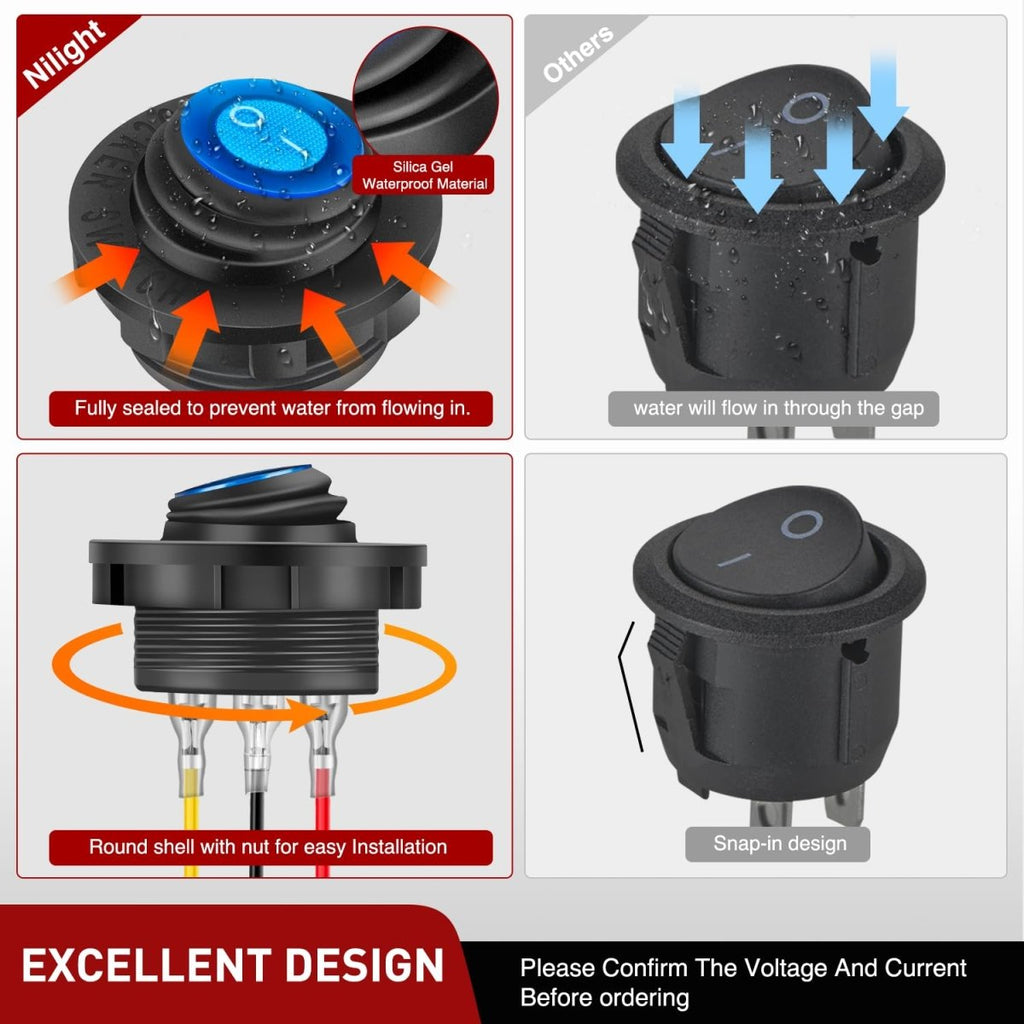

IP65 Waterproof Rating
This push button switch is fully sealed to prevent water from flowing in. can be used in a wet environment, no worry about rain or water anymore, which can be used outdoor and rainy day.

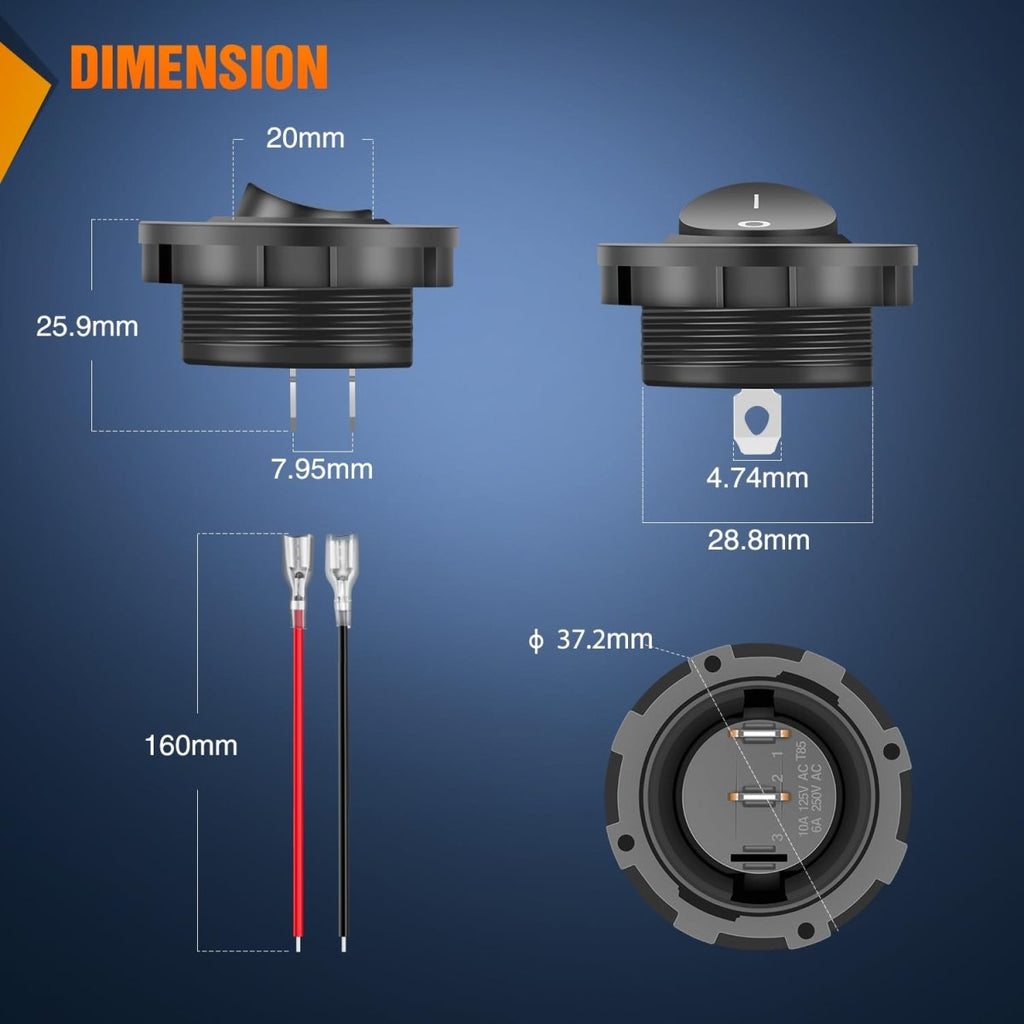

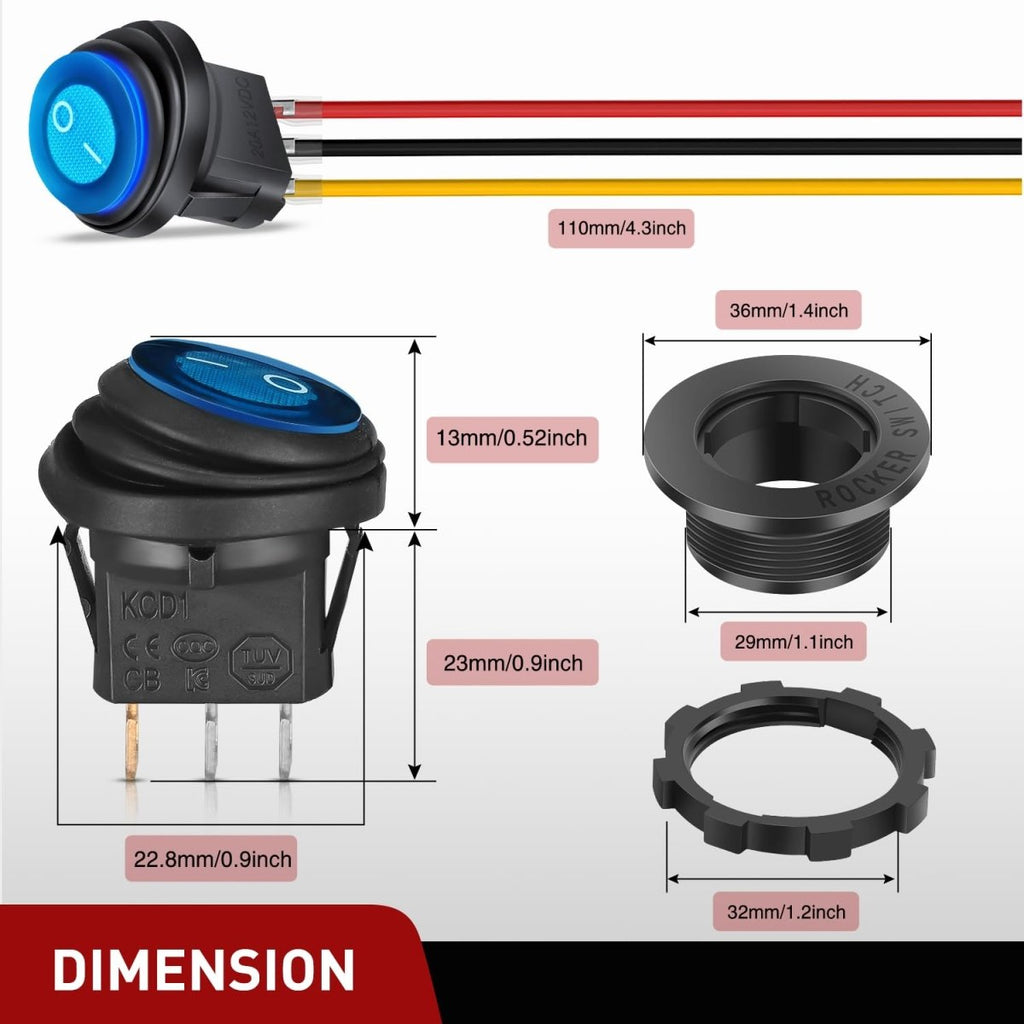

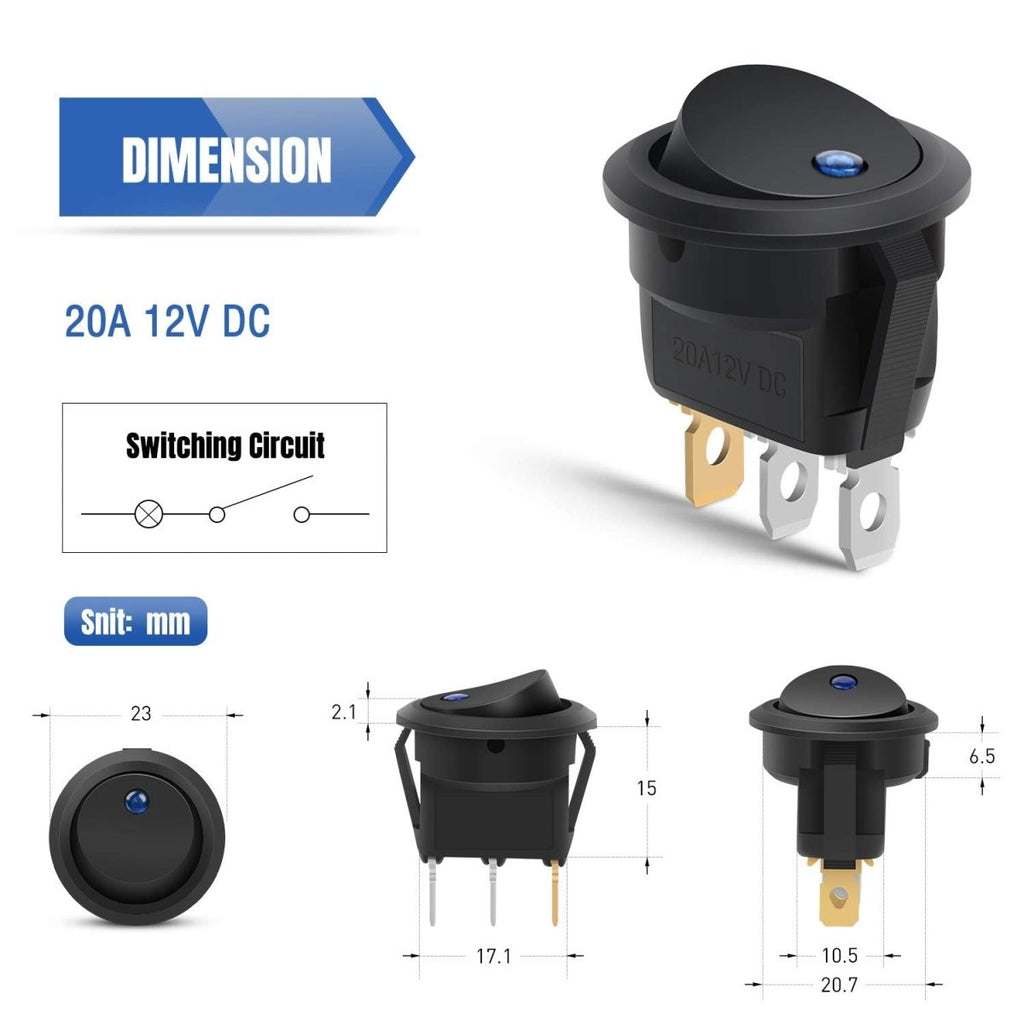

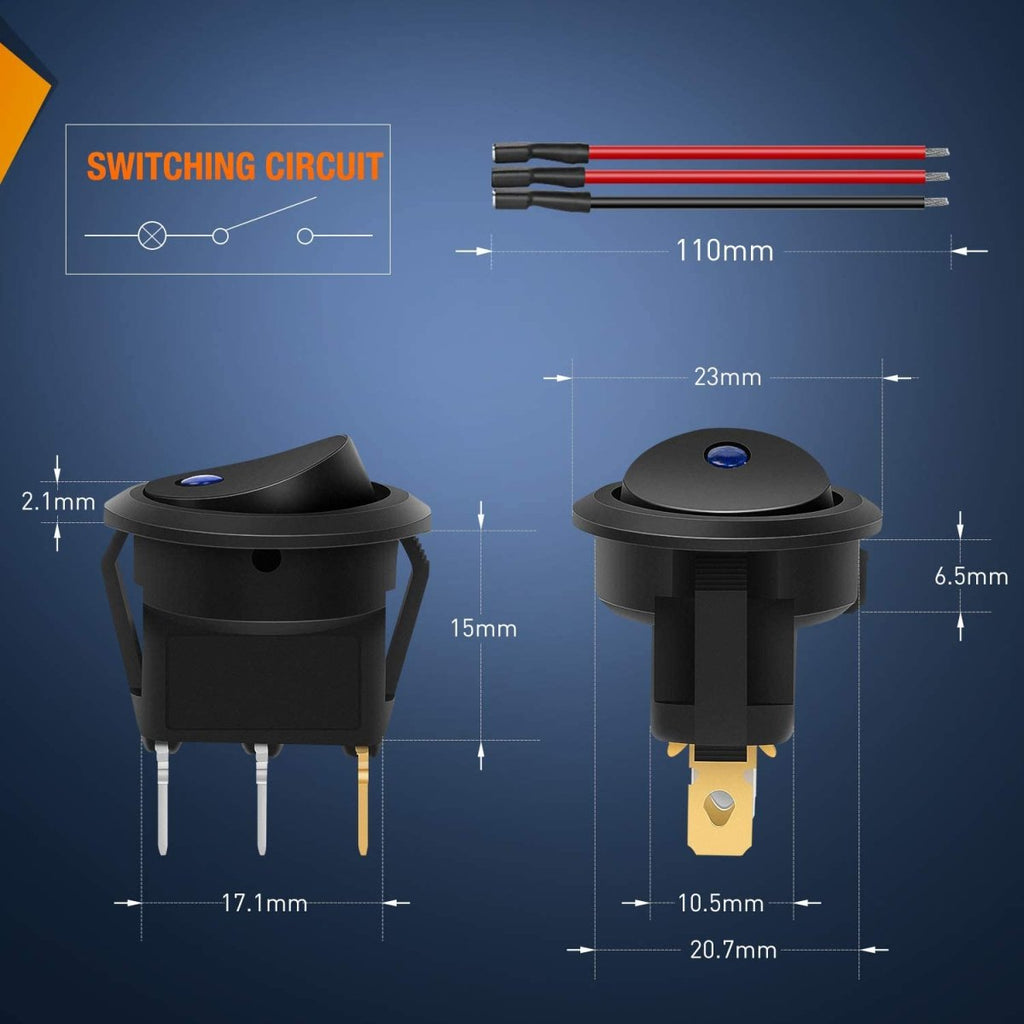

Installation size and effect
Size

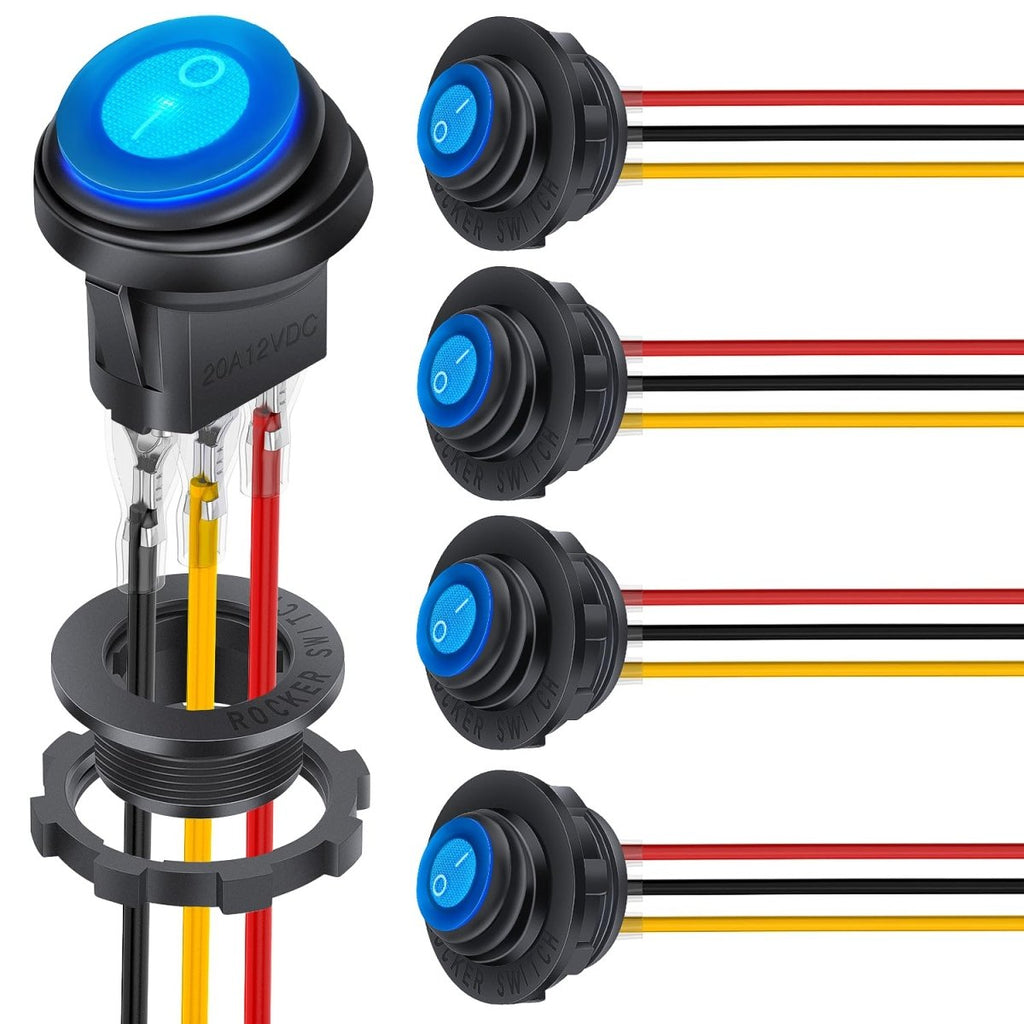

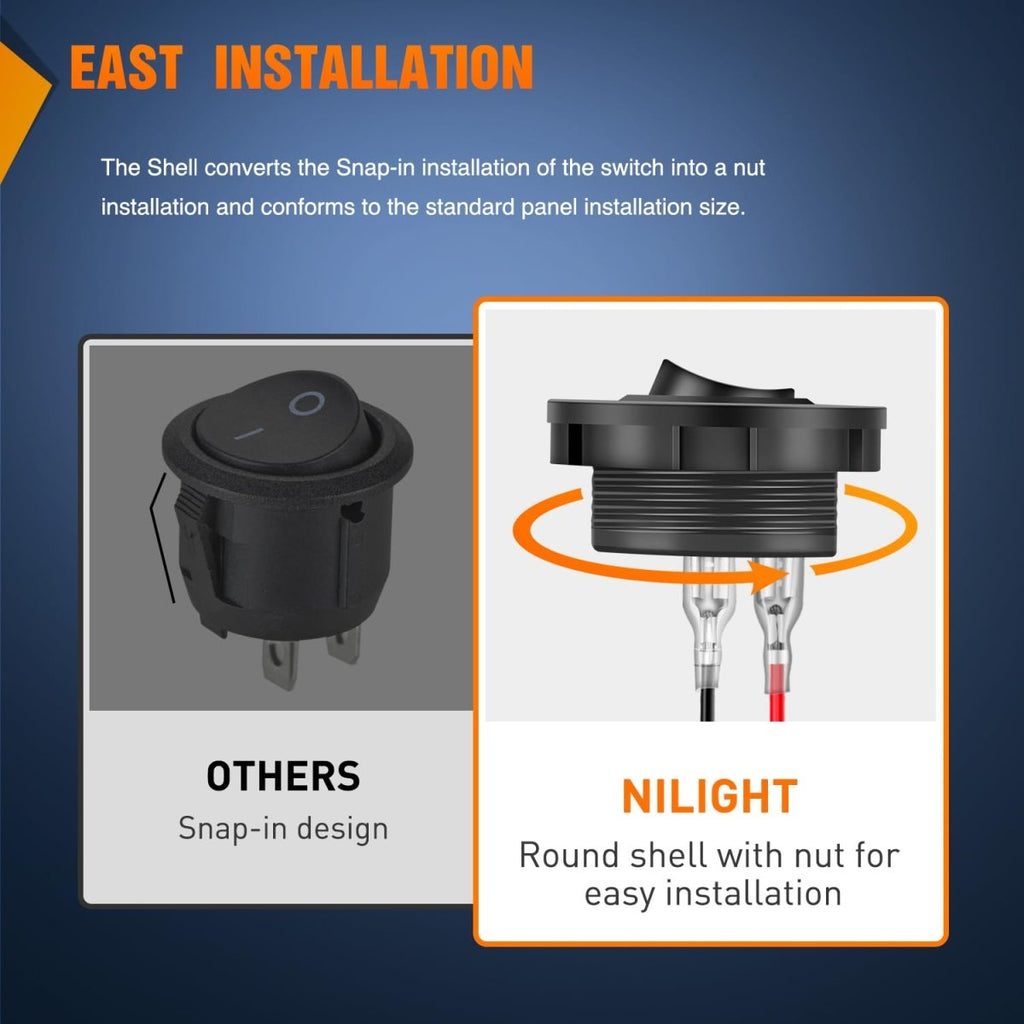

Round shell with nut for easy installation
The shell converts the snap-in installation of the switch into a nut installation and conforms to the standard panel installation size

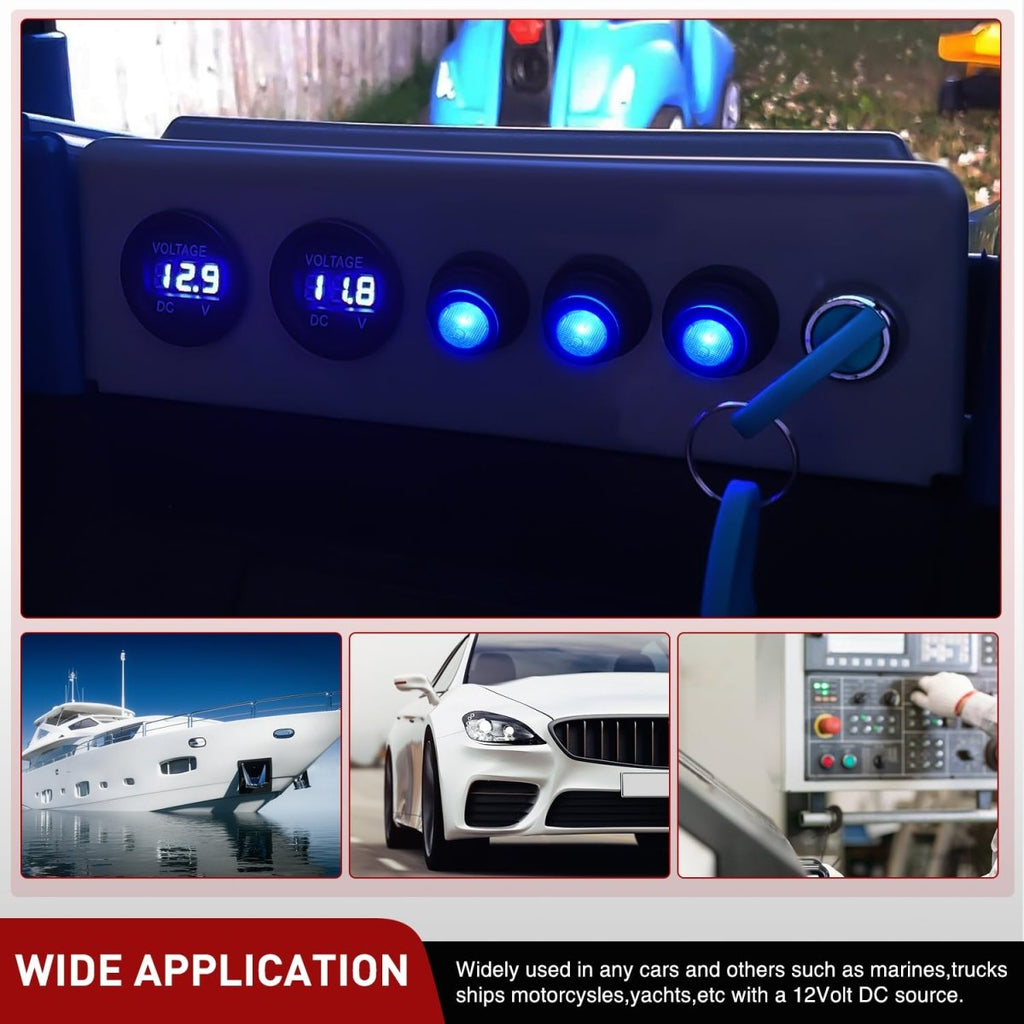

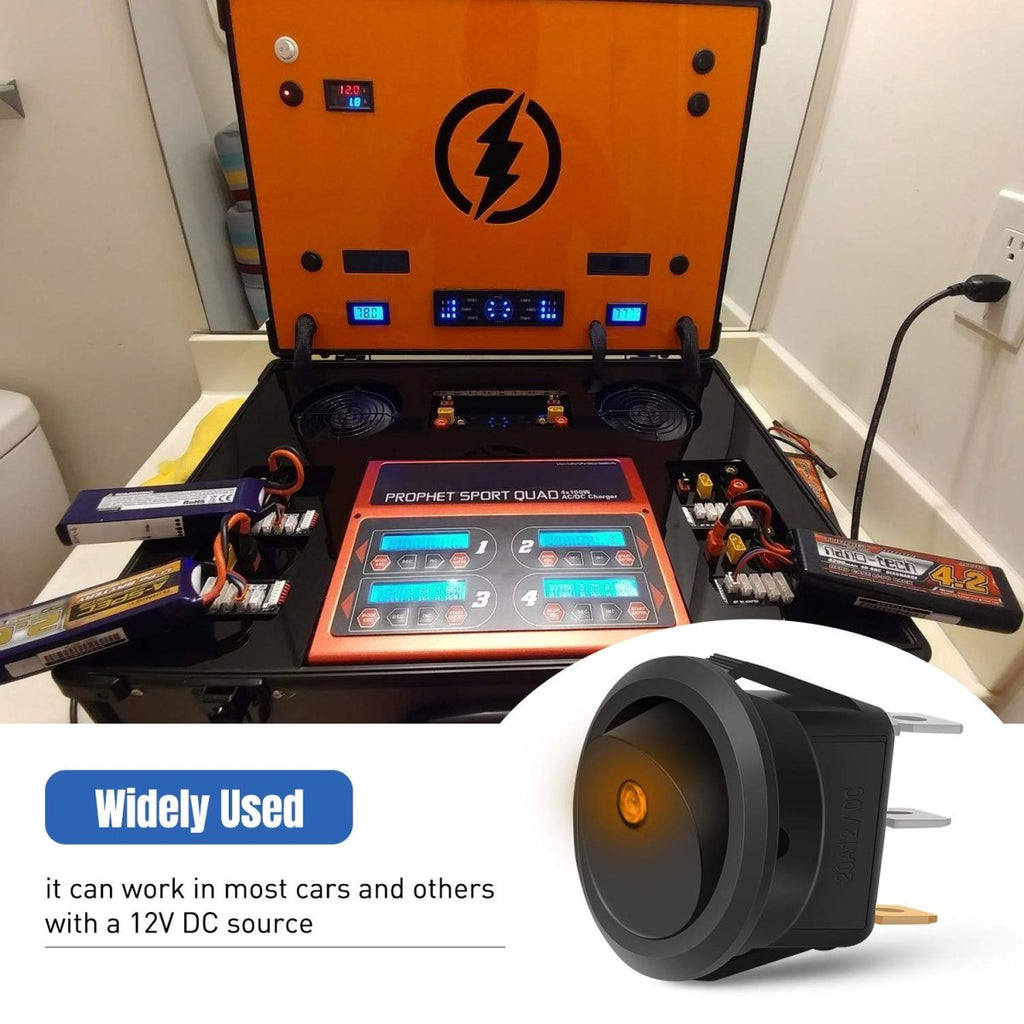

Application

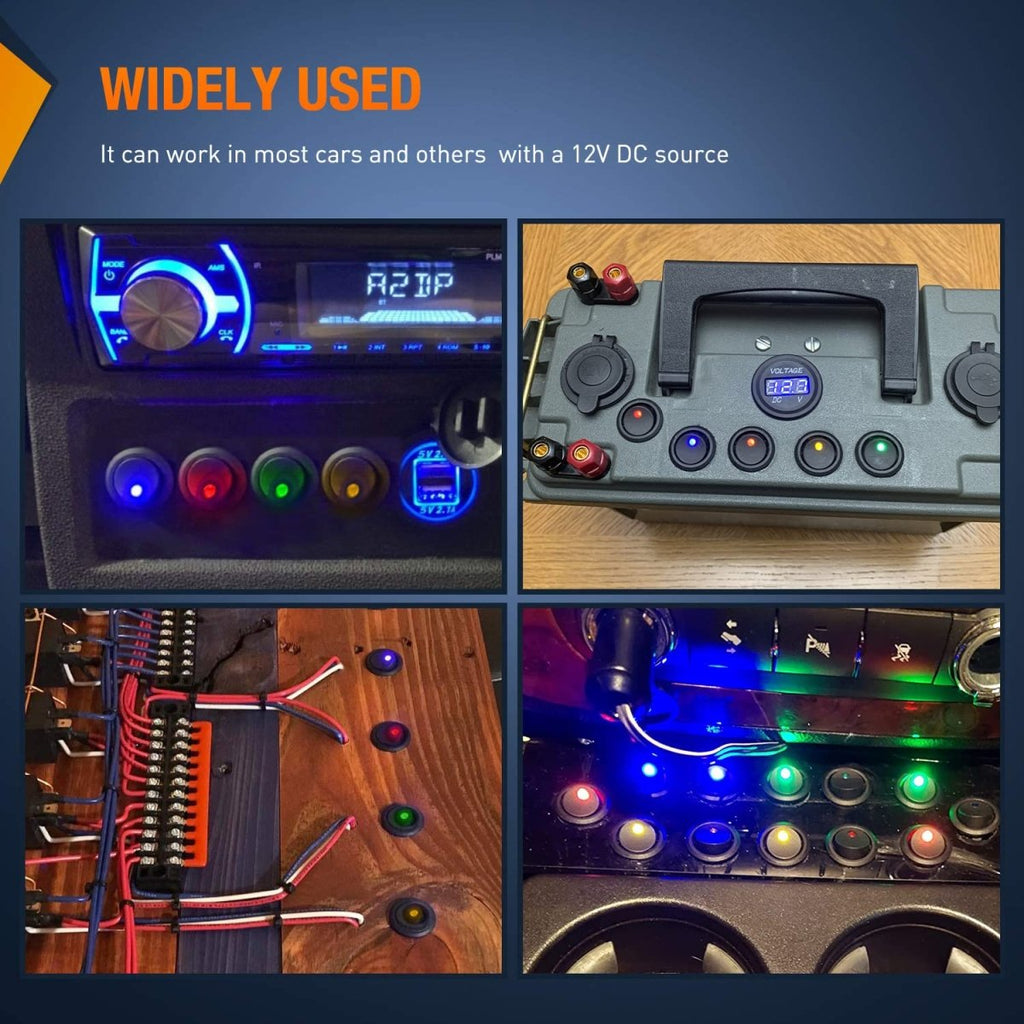

Greatly suitable for most DC 12V-24V cars, UTV/ATV, trucks, trailer, RV, caravan, bus, marine boat, yacht, airplane, etc.

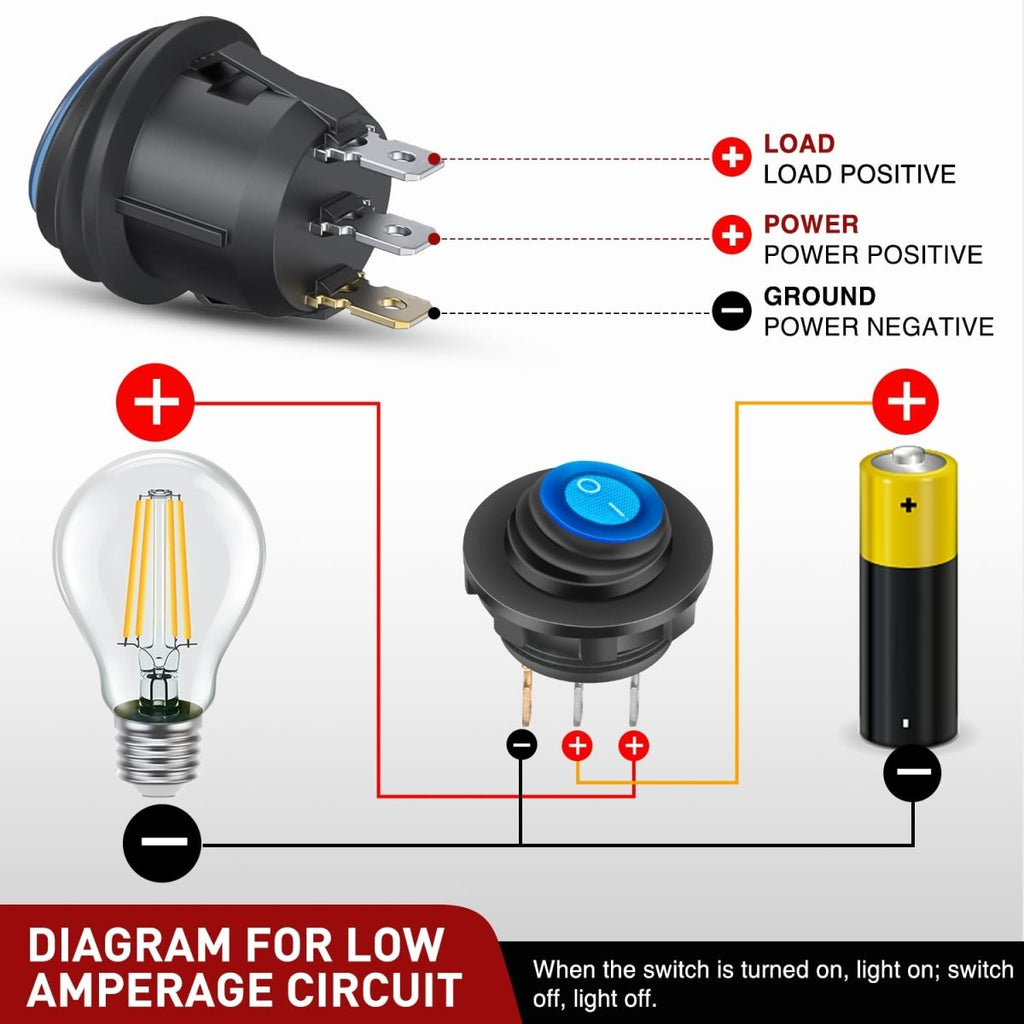

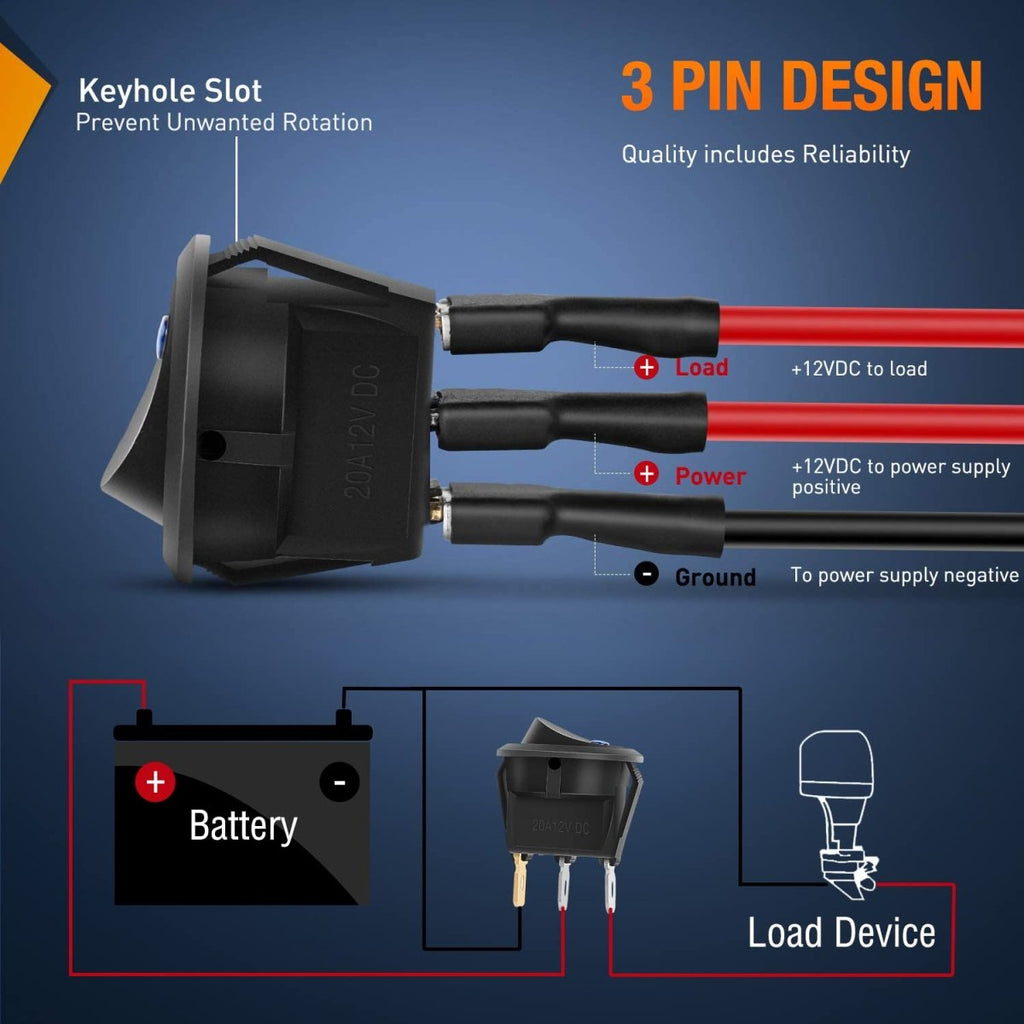

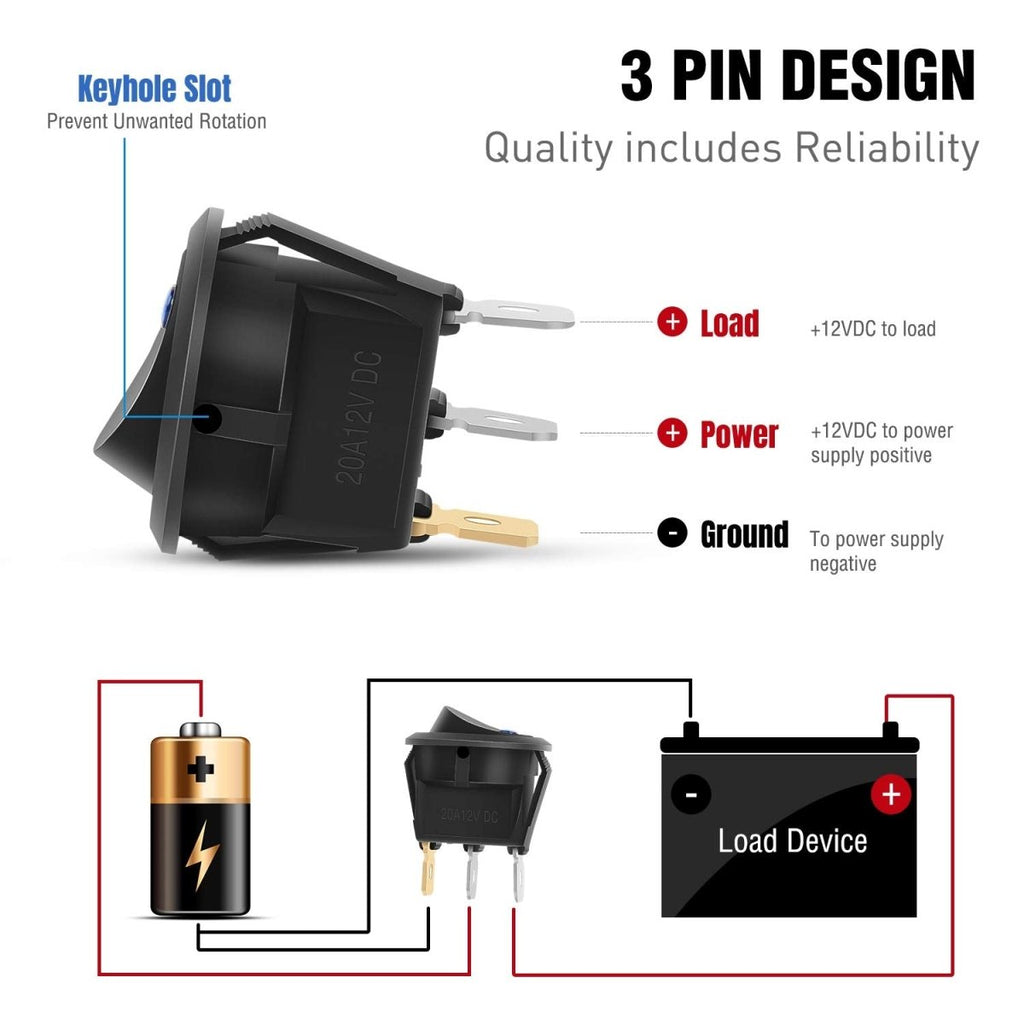

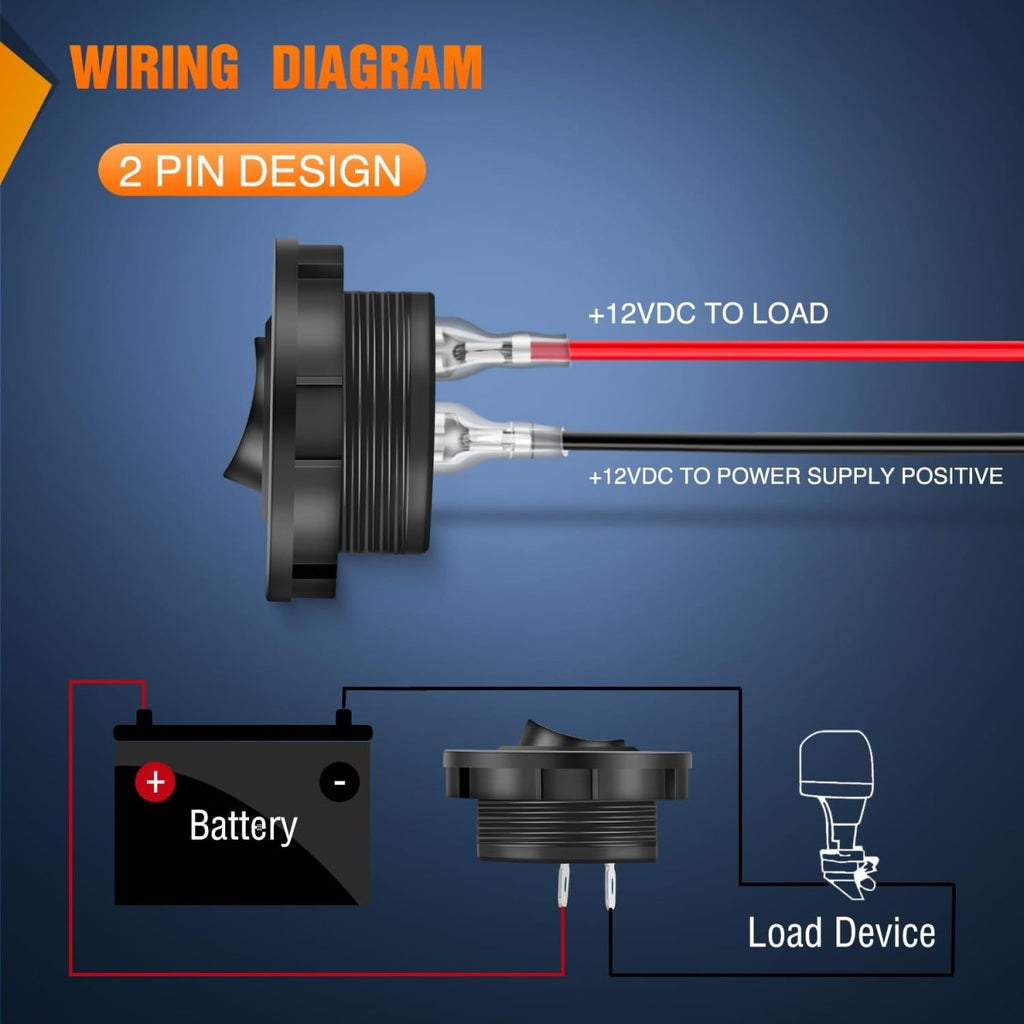

Connection Way-LOW AMPERAGE CIRCUIT
Material: Made of ABS material, The terminal is made of brass, silver plated., resistant to high temperature, low temperature, and flame retardant;
Rated at 12V 20A DC and 125V 10A AC ; Output:5V DC;
Illuminated LED color: Blue;
Terminal: 3Pin

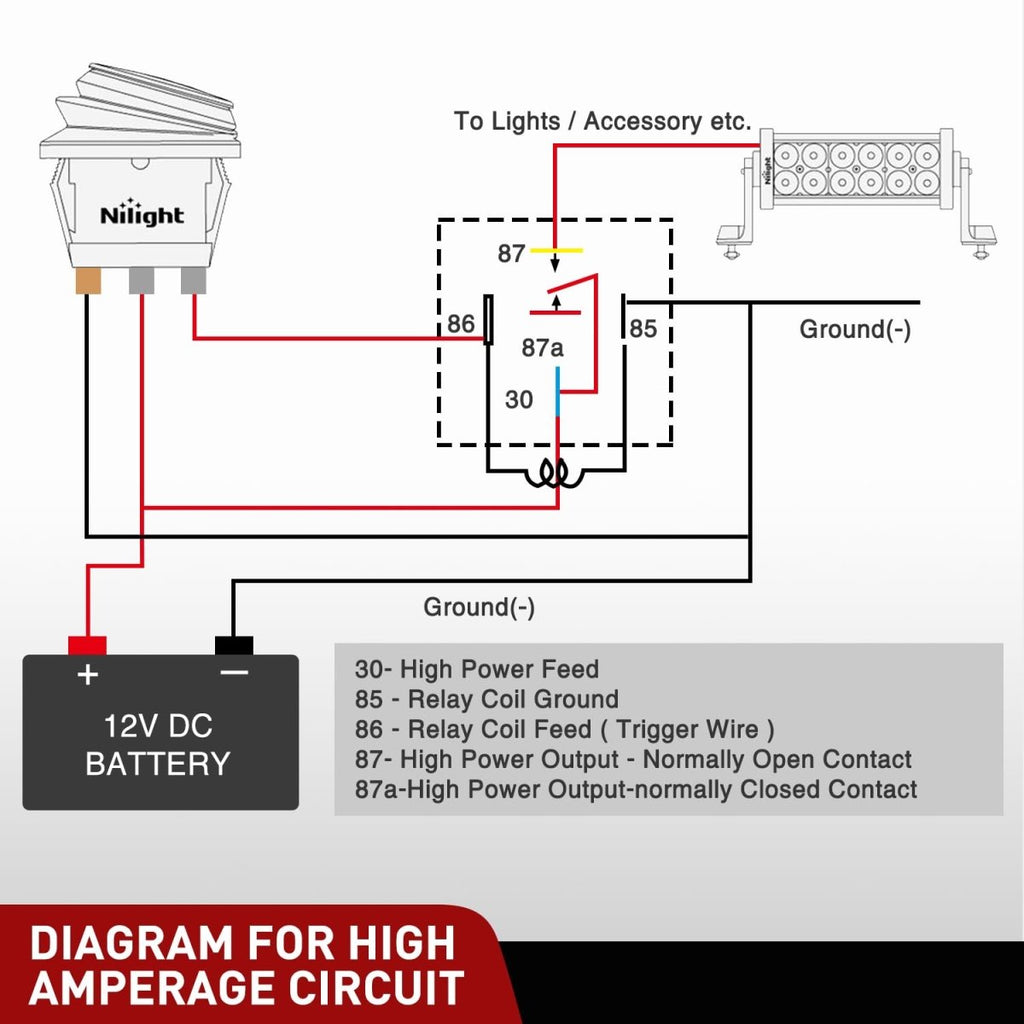

Connection Way-HIGH AMPERAGE CIRCUIT
Related product for this item
 ON Off Rocker Switches |
 LED Metal Button Switches |
 Latching Push Button |
 Toggle LED Rocker Switch |
 Toggle LED Rocker Switch |
 Round Rocker Switch |
|
|---|---|---|---|---|---|---|
|
Customer Reviews
|
4,266
|
1,387
|
1,387
|
107
|
8,526
|
—
|
|
Price
|
$8.09 | $8.99 | $12.95 | $12.51 | $14.99 | — |
|
Swtich Type
|
ON-OFF | Momentary (ON)-OFF | ON-OFF | ON-OFF | ON-OFF | ON-OFF |
|
Type
|
SPST | SPDT | SPDT | SPST | SPST | SPST |
|
LED Color
|
Blue | Blue | Blue | Blue | Blue | Blue |
|
Wire Length
|
4.3 INCH | 7.09 INCH | 8 inch | / | / | / |
|
Mounting Hole Size
|
29 mm | 16 mm | 12 mm | 12mm | 12mm | 11mm |
|
Quantity
|
5 PCS | 1 PCS | 5 PCS | 5 PCS | 5 PCS | 5 PCS |

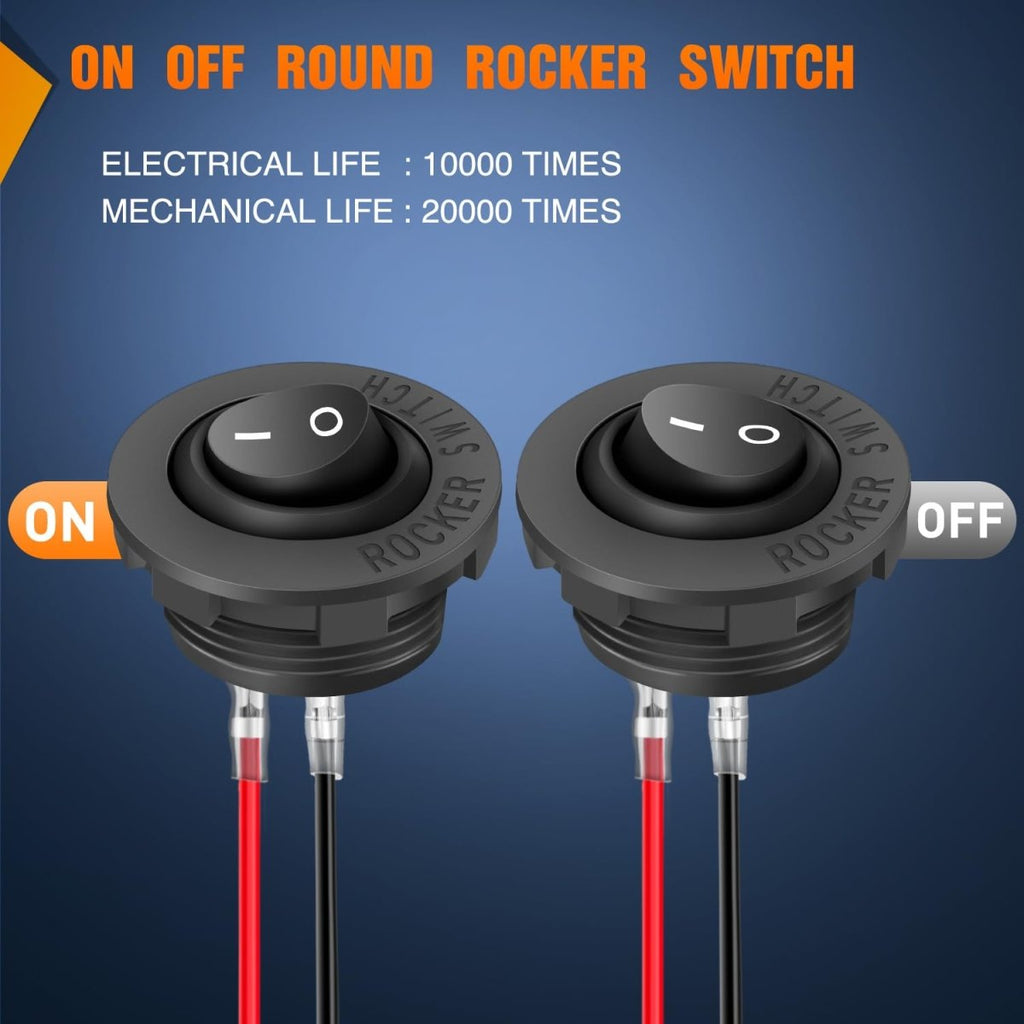

- Blue Indicator Light ON OFF Switch: On/off push button switch with blue indicator light is 3 pin ON OFF SPST design (single pole single throw), "O I" marked on the button, with 10A 125V AC and 20A 12V DC Rating. Lifetime can up to 500,000 cycles, durable and antirust.
- Safety Protection: This truck rocker switch control uses copper-plated silver contacts, has good electrical conductivity, and uses high-quality materials and flame-retardant casing for high safety. IP65 Waterproof toggle switch is protected against dust and low-pressure water jets. It is fully sealed to prevent water from flowing in.
- Rocker Switch Holder: The Round Shell with nut makes the 12V rocker switch install or remove much easier. And the panel mounting hole diameter of Round Rocker Switch Shell is 29mm. come with 5 sets of wires included, you can connect the Round Rocker Switch to device more conveniently.
- Widely Application: Our switch can be used as a switch for various additional electric equipment, inside and outside the car. AC or DC enviroment. It is widely used to control LEDs and circuits on Car, RV, Marine Boats, Trucks, Households, Coffee Machine, Industrial Equipment and Medical Equipment. Can also use these on water dispenser, running machine, electromobile and other household appliances modification
- Package Includes: 5 x Round rocker switches, 10 x Red wires, 5x Black wires, 1x user manual
| Operation Mode | ON-OFF |
| Current Rating | 20 Amps |
| Operating Voltage | 12 Volts (DC) |
| Contact Type | Normally Open |
| Connector Type | Plug In |
| Brand | Nilight |
| Terminal | Spade |
| Item dimensions L x W x H | 1.97 x 1.97 x 1.97 inches |
| Circuit Type | 1-way |
| Actuator Type | Rocker |
